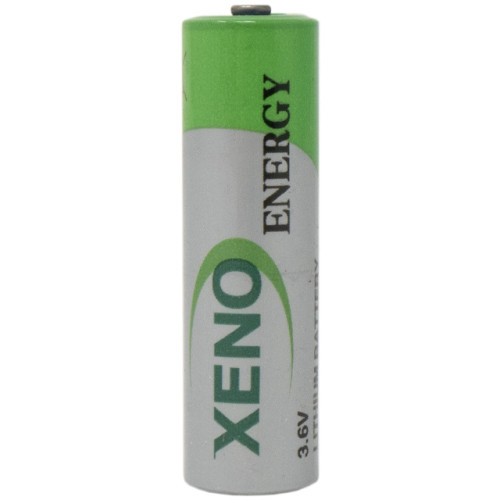

The Xeno XL-060F is a robust Lithium Thionyl Chloride AA battery engineered for critical industrial applications. Offering a nominal voltage of 3.6V and a capacity of 2400mAh, it is designed to power specialty electronics such as computer real-time clocks, tracking devices, seismological research equipment, and a variety of remote sensors. Its advanced features include high and steady operating voltage, improved transient minimum voltage behavior, and a very low self-discharge rate, ensuring long-term reliability and performance even under harsh conditions. The battery's bobbin wound construction and ability to deliver pulse currents up to several amperes make it a top choice for high-tech devices.
In terms of specifications, the battery measures approximately 1.97 inches in length and 0.31 inches in width, weighs around 17 grams, and operates efficiently within a temperature range of -55°C to +85°C. It supports a continuous current of 60mA and a pulse current of 120mA, making it well-suited for devices like electronic locks, GPS/GSM systems, memory backups, and various metering and scientific instruments. Packaged in bulk, the Xeno XL-060F serves as an effective replacement for several traditional batteries such as the Tadiran TL series, SAFT LS models, and others. A crucial caution is that these primary batteries are non-rechargeable, and attempting to recharge them can cause significant damage.
| Brand: | Xeno |
| Model: | XL-060F |
| Size: | AA |
| Chemistry: | Lithium Thionyl Chloride (Li-SOCl2) |
| Nominal Capacity: | 2.6 Ah |
| Nominal Voltage: | 3.6 Volt |
| Max. recommended continuous current: | 60 mA |
| Max. Pulse current capability: | 120 mA |
| Operating Temperature Range: | -55°C/+85°C (-67°F/+185°F) |
| Lithium Metal Content: | approx. 0.7g |
| UL Approval: | MH28122 |
| Terminal: | Button Top |
| Diameter: | 7.9mm (0.31in) |
| Height: | 50mm (1.97in) |
| Weight: | 17g (0.59oz) |
Key Features:
- High operating voltage, stable during most of the application lifetime
- Some of the highest nominal capacities on the market today
- Excellent reliability over extended operating life
- Operating Temperature Range: -60°C/+85°C (-76°F/+185°F)
- Low self-discharge rate (less than 3% after 1 year of storage at + 20°C)
- Excellent resistance to humid environments
- Low magnetic signature
- Non-flammable (and non-pressurized at ambient temperature) inorganic (but corrosive) electrolyte
- Less than 1% capacity loss during storage at ambient temperature before use
Also Known As:
- Tadiran TL-2100
- Tadiran TL-4903
- Tadiran TL-5104
- Tadiran TL-5903
- SAFT LS-14500
- SL-760
- Toshiba ER6V
- ER6LV
- Maxell ER6
- LS-14500C
- Sonnenschein SL-360
- ER6C
- and many others
