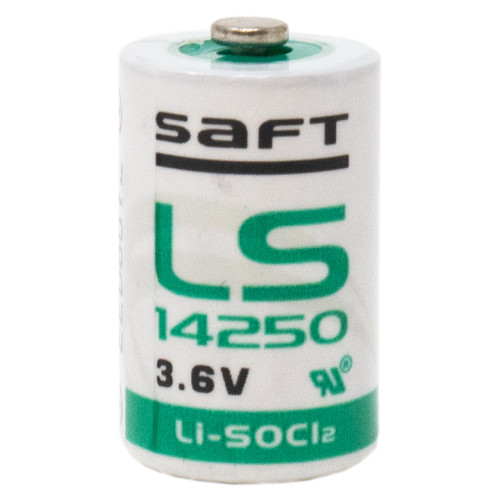

Saft LS14250 (ER14250) 3.6V 1/2 AA 1200mAh Lithium Battery

SKU:18590

SAFT

$7.29
(No reviews yet) Write a Review
SKU:
18590
UPC:
628848185903
Minimum Purchase:
2 units
Bulk Pricing:
Buy in bulk and save
Size:
1/2 AA
Size:
LS14250
Size:
ER14250
Chemistry:
Lithium Thionyl Chloride
Voltage:
3.6 Volt
Terminal:
Button Top
Rechargeable:
No
ecotax_id:
18
ecotax_qty:
1
Adding to cart… The item has been added
Qty. Price

Compatible Products

Product Specifications

Specifications

  • Chemistry: Lithium Thionyl Chloride (Li-SOCl2)
  • Nominal Capacity: 1200 mAh
  • Brand: Saft
  • Concentric (“bobbin”) electrodes
  • Diameter (max): 14.5mm (0.55 in)
  • Height (max): 25.25mm (1 in)
  • Typical Weight: 12 g (0.4oz)

Key Features

  • High operating voltage, stable during most of the application lifetime
  • Some of the highest nominal capacities on the market today
  • Excellent reliability over extended operating life
  • Operating Temperature Range: -60°C/+85°C (-76°F/+185°F)
  • Low self-discharge rate (less than 1% after 1 year of storage at + 20°C)
  • Excellent resistance to humid environments
  • Low magnetic signature
  • Good resistance to passivation
  • Non-flammable (and non-pressurized at ambient temperature) inorganic (but corrosive) electrolyte
  • Less than 1% capacity loss during storage at ambient temperature before use
  • ½ AA, AA and A cell models non-restricted to transport
  • Up to 25 years of mass production experience
  • Excellent safety records
  • Compliant with IEC 86-4 safety standard and EN 50020 intrinsic safety standard
  • Compliance with the European directive RoHS

Main Applications

  • Backup power for circuit board.
  • General purpose; camera/electronic cells
  • Medical equipment; military/aerospace
  • Telecommunications; water/electricity meter
  • LED lighting applications
  • Others

Also Known As

  • Tadiran TL-5902, TL-2150, TL-5151, TL-5902, TL-5101, TL-5101/S TL-5111, Saft LS-14250, LS-14250c, Toshiba ER3v, Sonnenschein SL-350/S, SL-750/S, SL-150/S, pmd 14250, sx 14250, tt 14250, AMD 14250, tx 14250, ca 14250, alpha 14250, km 14250, BM 14250, IP 14250, ex 14250, qm 14250, gx 14250, ww 14250, dx 14250, sm 14250, bk 14250

️  Warning

  • This battery is not rechargeable. Do not try to recharge.
  • The storage area should be clean, cool (not exceeding +30 Deg C ), dry and ventilated
  • Please discharge the battery few minutes with 100mA,if the battery voltage is lower than your need or consult ABLE.
  • Don't use different models of battery in series.
  • Soldering the tab should be finished in few seconds.
  • Do not use if the battery casing was mangled

  • The manufactured date appears on the battery. The battery has a shelf life of 7 - 10 years.

Saft LS14250 (ER14250) 3.6V 1/2 AA 1200mAh Lithium Battery


Saft LS14250: A High-Performance 3.6 Volt Lithium Battery for Diverse Applications



The Saft LS14250 3.6-volt lithium battery is widely recognized for its versatility, reliability, and superior performance. Whether used for memory backup, tracking systems, handheld devices, or emergency equipment, this battery is a trusted power source in both commercial and personal applications. With features like high energy density, an extended shelf life, and consistent performance under varying conditions, the Saft LS14250 stands out as a premier choice for demanding power needs.


High Energy Density: Power in a Compact Package

One of the standout features of the Saft LS14250 is its high energy density. This means that the battery can store a large amount of energy within a compact and lightweight design. For applications where space is limited, such as portable devices or small electronics, this feature is invaluable.



For instance, GPS trackers, medical devices, and digital cameras often require batteries that can deliver significant power without adding bulk. The compact size of the LS14250 makes it an excellent fit for such devices, ensuring that users get the energy they need without compromising on portability. Its lightweight construction also makes it suitable for handheld devices, offering long-lasting performance without adding unnecessary weight.


Long Shelf Life: Power When You Need It

The long shelf life of the Saft LS14250 is another factor that sets it apart from traditional batteries. Unlike alkaline batteries, which may begin to lose charge after a few months of storage, the LS14250 can retain its charge for up to 10 years. This extended shelf life makes it an ideal choice for devices that are used infrequently or in emergencies, such as flashlights, weather radios, and emergency medical equipment.

For applications where reliability over time is crucial, this battery delivers unmatched performance. Homeowners and professionals alike can store these batteries with confidence, knowing they will be ready to perform even after years of inactivity. This feature is particularly valuable in disaster preparedness kits, where dependable power can make a critical difference in emergency situations.


Reliability in Extreme Conditions

Reliability under a wide range of environmental conditions is a hallmark of the Saft LS14250. This lithium battery is designed to perform consistently in extreme temperatures, from freezing cold to scorching heat, with an operational temperature range of -60°C to +85°C.

For outdoor applications, such as GPS tracking systems, weather monitoring equipment, and remote sensors, this durability is essential. Devices used in these environments must endure temperature fluctuations, humidity, and other challenging conditions. The LS14250 excels in such scenarios, providing dependable power no matter the weather or terrain.


Consistent Voltage Output for Sensitive Applications

Another significant advantage of the Saft LS14250 is its ability to deliver a steady voltage output throughout its discharge cycle. This consistency is crucial for devices that rely on stable power, such as memory backup systems in electronics. Unlike alkaline batteries, which may experience voltage drops as they discharge, the LS14250 maintains a consistent output, ensuring uninterrupted operation.

Memory backup systems, for instance, depend on a stable power source to preserve critical data. With the LS14250, users can rest assured that their data is safe, even during power outages or system failures. Similarly, in tracking devices or medical equipment, this steady power supply ensures accurate and reliable performance.


Applications of the Saft LS14250

The versatility of the Saft LS14250 makes it a go-to choice for a wide range of applications, including:

Memory Backup in Electronics:
Many devices, such as PLCs (programmable logic controllers), require a reliable power source to maintain memory during outages. The LS14250 excels in this role, providing consistent energy for data preservation.
GPS Tracking Systems:
Compact and powerful, this battery is ideal for GPS trackers, which often operate in remote or harsh conditions. Its long life and reliability make it a trusted power source for tracking devices used in logistics, wildlife monitoring, or personal safety.
Emergency Equipment:
Emergency flashlights, weather radios, and medical devices benefit from the LS14250’s long shelf life and reliable performance. Users can store these batteries for years without worrying about degradation.
Industrial Applications:
In industrial automation, the LS14250 powers sensors, controllers, and other critical components, ensuring uninterrupted operation in demanding environments.
Consumer Electronics:
Digital cameras, handheld devices, and portable medical equipment benefit from the battery’s high energy density and consistent output, making it a reliable choice for personal use.


Why Choose the Saft LS14250?

The Saft LS14250 3.6-volt lithium battery is a high-performance power source that excels in a variety of applications. Its compact design, high energy density, long shelf life, and reliable performance in extreme conditions make it a top choice for both industrial and personal use. While it may have a higher initial cost and limited availability compared to other batteries, these drawbacks are outweighed by its advantages in durability, efficiency, and consistency.



Whether you need a dependable battery for a GPS tracker, a memory backup system, or an emergency flashlight, the Saft LS14250 delivers unmatched reliability and performance. Its ability to operate in challenging environments and provide steady power ensures that your devices remain functional and efficient, even in the most demanding conditions.



Investing in the Saft LS14250 means choosing a battery that is built to last, offering peace of mind and superior performance for years to come. With its proven track record in diverse applications, this lithium battery is a trusted choice for users who value quality and dependability.
